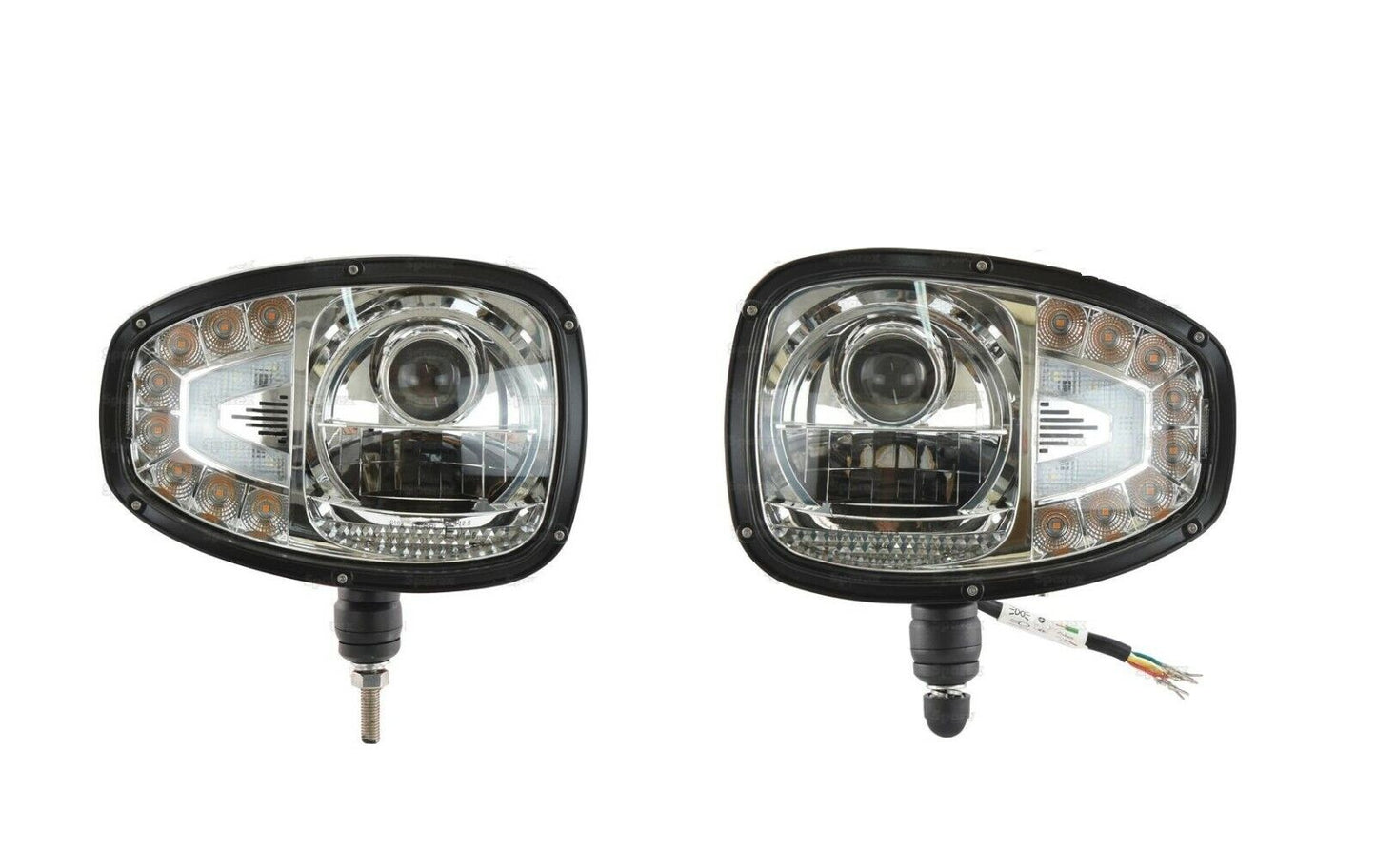

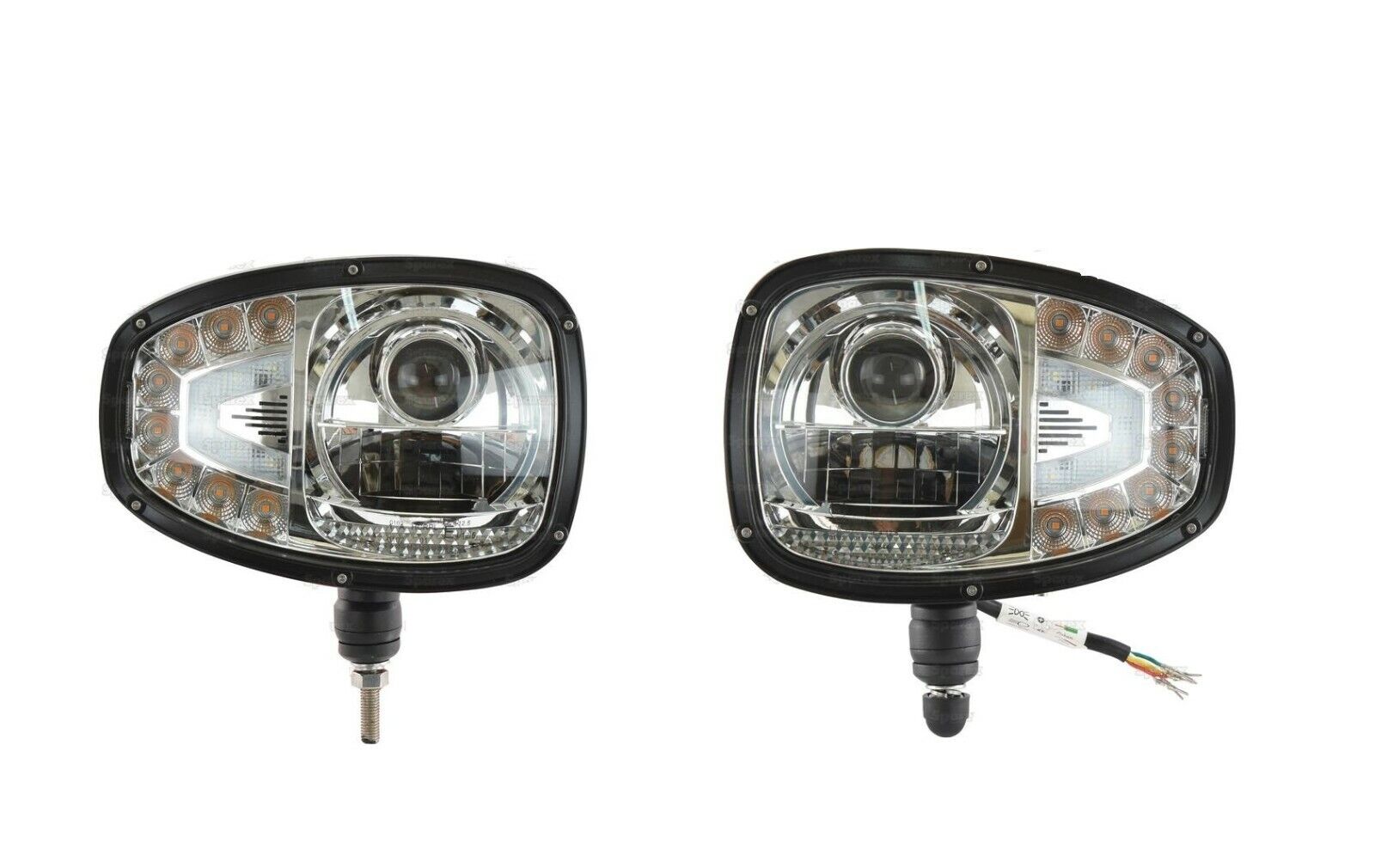

JCB FASTRAC PAIR OF LED HEAD LIGHTS LAMPS LEFT RIGHT VERY HIGH QUALITY

Name: JCB FASTRAC PAIR OF LED HEAD LIGHTS LAMPS LEFT RIGHT *VERY HIGH QUALITY*
Brand: My Store
SKU: AUTX-10131
Price: 374.99 GBP
Availability: InStock

£374.99 GBP

Sale Sold out

Taxes included. Shipping calculated at checkout.

Quantity

TO FIT: 526-56, 527-58, 531-70, 533-105, 533-140, 535-95, 536-60, 540-140, 540-170, 540-200, 550-140, 550-80, Fastrac 2115, Fastrac 2170, Fastrac 3200, Fastrac 3230, Fastrac 7170, Fastrac 7200, Fastrac 7230, Fastrac 7270, Fastrac 8250, Fastrac 8280, Fastrac 8310

MANUFACTURER PARTNUMBER REFERENCE: NA

Beam Angle

Low Beam 65°

Brand

Bulb type

LED

Cable length mm

250

CE Approved

Yes

Connection Type

DT Connector (Six Pin)

Depth mm

237

Dip

LH Dip

ECE Rating

Reg 112, Reg 6, Reg 7, Reg 10

Electromagnetic compatibility

Conforms EMC

Fitting

Fixing

1 Bolt

Function

4, High / Low Beam / Pilot Light / Indicator

Height mm

161

Homologated

ECE R112/6/7/10

Housing Material

Various Plastic Compounds

IP Rating

IP65

ISO Rating

ISO 9001:2015

Lens Colour

Clear

Lens Material

Plastic Safety Glass

LH or RH

Light source

LED

Lumens

2400

Lumens Effective

480 - 615

Lumens Raw

1200 - 1290

Lux Value

67300 - 26800

Material

Polycarbonate

Maximum Temperature

+60°C

Minimum Temperature

-40°C

Number of LEDs

2 LEDs

Overall height mm

161

Overall length mm

237

Overall width mm

109

Power Consumption @ 12V

Low Beam 1.25Amps

Power Consumption @ 24V

Low Beam 0.625Amps

Profile

Standard
